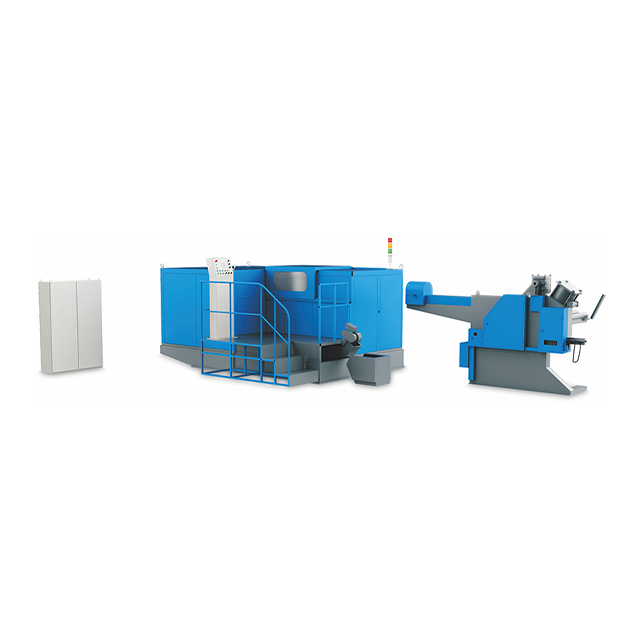

6-Die 6-Blow Cold Heading Machine

The centralized air pressure regulation system imported from Japan is durable.
The secondary power transmission mechanism, the upsetting force is larger, and the power output is more stable.

After the adjustment mechanism is poked out, each station can be adjusted independently, and the cam can be replaced or modified in the last station to realize the trimming function.

Independent research and development of operating software, equipped with German imported touch operation panel, easier to control.

The ratchet wire feeding mechanism has multiple one-way bearings inside, and cooperates with the pawl to prevent the material from returning and ensure the stable wire feeding.

After the hand-crank digitization, the adjustment mechanism is poked out, and each station can be independently adjusted.

The imported air pressure clutch transmission mechanism accurately controls the instantaneous separation or closure of the flywheel shaft and the flywheel. So that the machine will not be subject to emergency braking during normal operation, causing damage to the motor and electric control.

The main slider adopts the " I " type structure, which can increase the running level and upper and lower support stroke of the main slider, ensure the stable operation of the main slider

Adopt self-developed clamp structure. The clamp mechanism controls the opening and closing of the clamping jaws through cams. The translation and flipping of the clamps can be carried out at the same time during operation, with high precision, strong stability and convenient adjustment.

Swing arm type pneumatic clamp, the clamping force is adjustable and can be rotated. When there is a short material, the first group of clamps will automatically open and not clamp the material.

The horizontal linear feeding system can precisely control the length of each feeding, increase the force area between the clamp and the wire, and prevent the wire from being pinched.
