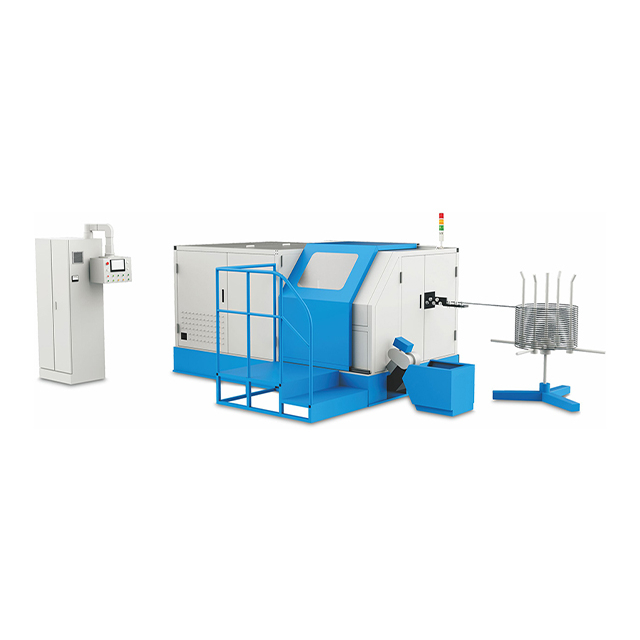

5-Die 5-Blow Cold Heading Machine

Independent research and development of operating software, equipped with German imported touch operation panel, easier to control.

Availability:
Quantity:
Inquire Add to Basket

Previous:
Next:
Product Description

Independent research and development of operating software, equipped with German imported touch operation panel, easier to control.

The main slider is connected with the rear wing dovetail design. During the operation of the main slider, the punching die and the main die are always concentric to ensure high production accuracy and stable operation. The main slider and the upper, lower and side surfaces of the two wings are made of super wear-resistant inlaid self-lubricating copper plates. Ensure the high precision of the machine, prolong the service life, and all the punching dies can realize the reverse striking function.
